PRESSURE MEASUREMENT FILM
Order Now Get a Free SampleOVERVIEW
Prescale film can precisely measure pressure, pressure distribution, and pressure balance. Red patches will appear on the film when pressure is applied and the color density changes according to the various pressure levels.
There are seven types of Fujifilm Prescale available to fulfill your varying pressure ranges. (7.25 PSI - 43,500 PSI) (0.05 - 300 MPa)
FEATURED ARTICLES
High voltage switches need perfectly aligned contact surfaces to prevent arching. Using the Fuji Prescale pressure mapping system engineers can...
Read More
the Fuji Prescale film helped engineers properly align brass and steel plates and come to proper conclusions about...
Read More
Nanoimprint Lithography enables fast manufacturing but needs regular vertical alignment checks to ensure quality. The Fuji Prescale Film enables...
Read More
Engineers and environemntalists benefit from the wide range of Fuji Prescale films in designing hydroelectric dams and turbines that are...
Read More
High power semiconductor stacks rely on uniform tactile pressure with heatsinks to avoid temperature overload. Using simple clamps...
Read More
Turbofans are complex devices that need maintenance. Using Fuji Prescale to map tactile pressure, technicians can...
Read More
High-volume manufacturing of microelectric and microfluidic devices requires precise dimensions and surface flatness of molds. Using the Fuji Prescale film, engineers can...
Read More
Total Hip Replacement requires minimal dimensions without sacrificing durability of the elements. Using Fuji Prescale Film, engineers discover...
Read MorePRODUCT BENEFITS
- Easy visual check of distribution/uniformity for contact pressure
- Contact pressure shown with differing concentrations of color can even be converted into numbers
- Lower cost with no special devices or equipment required
- Quick measurement gives an at-a-glance picture

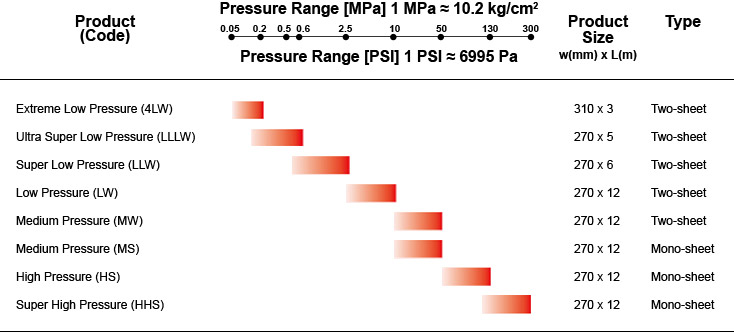

LINE UP
Seven types of Prescale
Supplied according to pressure level. Select appropriate Prescale.
Notes: W in the product codes indicates two-sheet type and S indicates mono-sheet type.
TECHNOLOGY
Two-sheet type
Extreme low pressure, ultra super low pressure, super low pressure, low pressure (4 types)
Composed of two kinds of films: A-film and C-film
- A-film: Base material (PET base) coated with a color-forming material (microcapsules)
- C-film: Base material (PET base) coated with a color-developing material
The coated sides of each film (color-forming and color-developing) must face each other. These are the sides with the matte finish. When pressure is applied, the microcapsules are broken and the color-forming material transfers to the color-developing material and reacts, thereby generating a red color.
Mono-sheet type
Medium pressure, high pressure, super high pressure (3 types)
Measurement is possible with a single sheet of film.
- A color-developing material and color-forming material (microcapsules) are coated, one above the other, on a single base material (PET base).
When pressure is applied, the microcapsules are broken and the color-developing material absorbs the color-forming material and reacts, thereby generating a red color.
HOW TO USE
Directions for Using Fujifilm Prescale
Prescale is the only material in the world able to measure pressure!
Microcapsules are broken and react with a color developing agent when pressure is applied.
Step 1
Cut Fujifilm Prescale to desired dimension.
Step 2
Insert Fujifilm Prescale in desired location and apply pressure.
Step 3
Remove pressure and film. Now, you can see and check its pressure/distribution.
SPECIFICATION AND OPERATIONAL ENVIRONMENT
| Accuracy | ±10% or less (measured by densitometer at 23°C, 65% RH) |
| Recommended service temperature | 68 °F ~ 95°F (20°C ~ 35°C) (*1) |
| Recommended service humidity | 35% RH ~ 80% RH (*2) |
| Thickness | Mono-sheet type (S): 100µm Two-sheet type (W): 100µm x2 |
*1 Extreme low pressure (4LW) | Super high pressure (HHS): 15°C ~ 30°C
*2 Extreme low pressure (4LW): 20% RH ~ 75% RH | Super high pressure (HHS): 35% RH ~ 70% RH
PRESSURE CHART EXAMPLE [LOW (LW) PRESSURE RANGE]

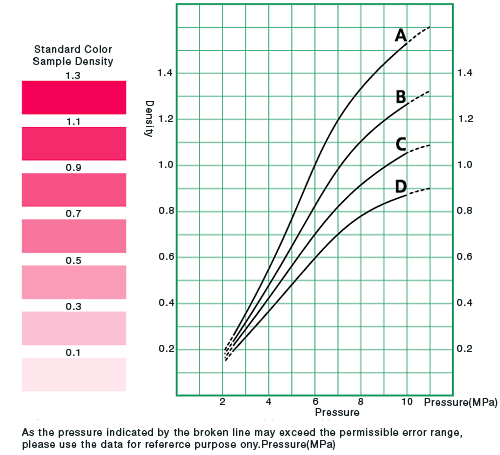

Continuous Pressure
Pressure measurement range: Low pressure (2.5~10MPa) Pressure application condition: Time to reach the pressure 2min. Time of retention at the pressure 2min.

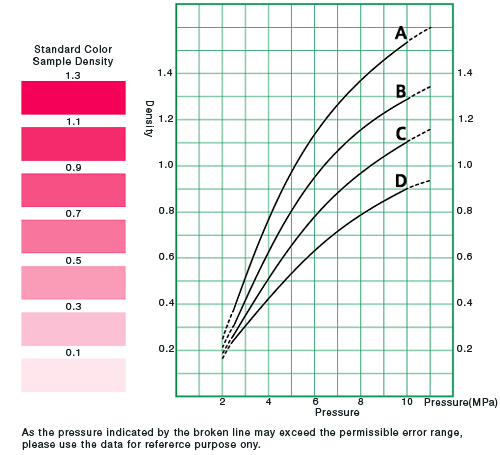

Momentary Pressure
Pressure measurement range: Low pressure (2.5~10MPa) Pressure application condition: Time to reach the pressure 5sec. Time of retention at the pressure 5sec.
NOTE: Fujifilm Prescale film is synonymous with pressure sensitive paper, tactile pressure indicating sensor film, pressure sensitive film, pressure paper, Fuji pressure film, Fuji paper, Fuji prescale film, prescale film, pressure sensitive tape, nip impression paper, nip paper.
